Strange Pro Series H/D Front Brake Kit | 1993-1997 Camaro & Firebird – Reuses OEM Hubs | 1 Pc Rotors, 4 Piston Calipers & DTC-30 Brake Pads


Designed Specifically For Drag Racing

Application
1993-1997 Camaro / Firebird / Trans Am
• Reuses factory wheel hubs
• Requires modification to knuckles *

* See instruction sheet

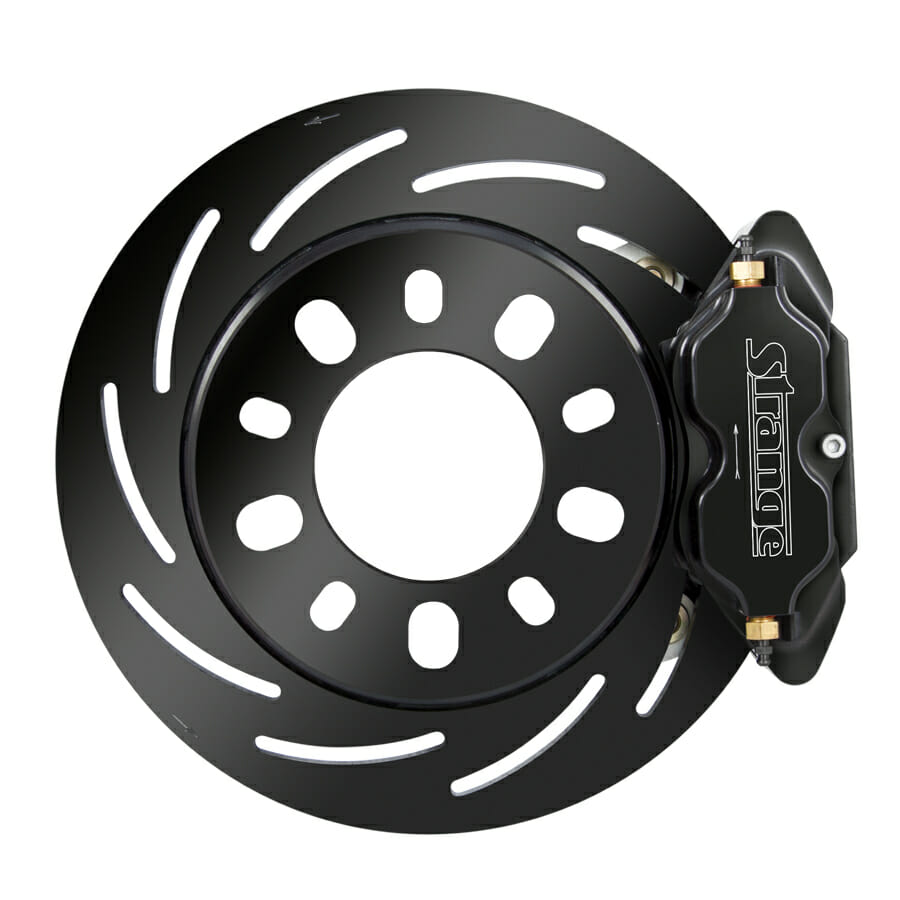

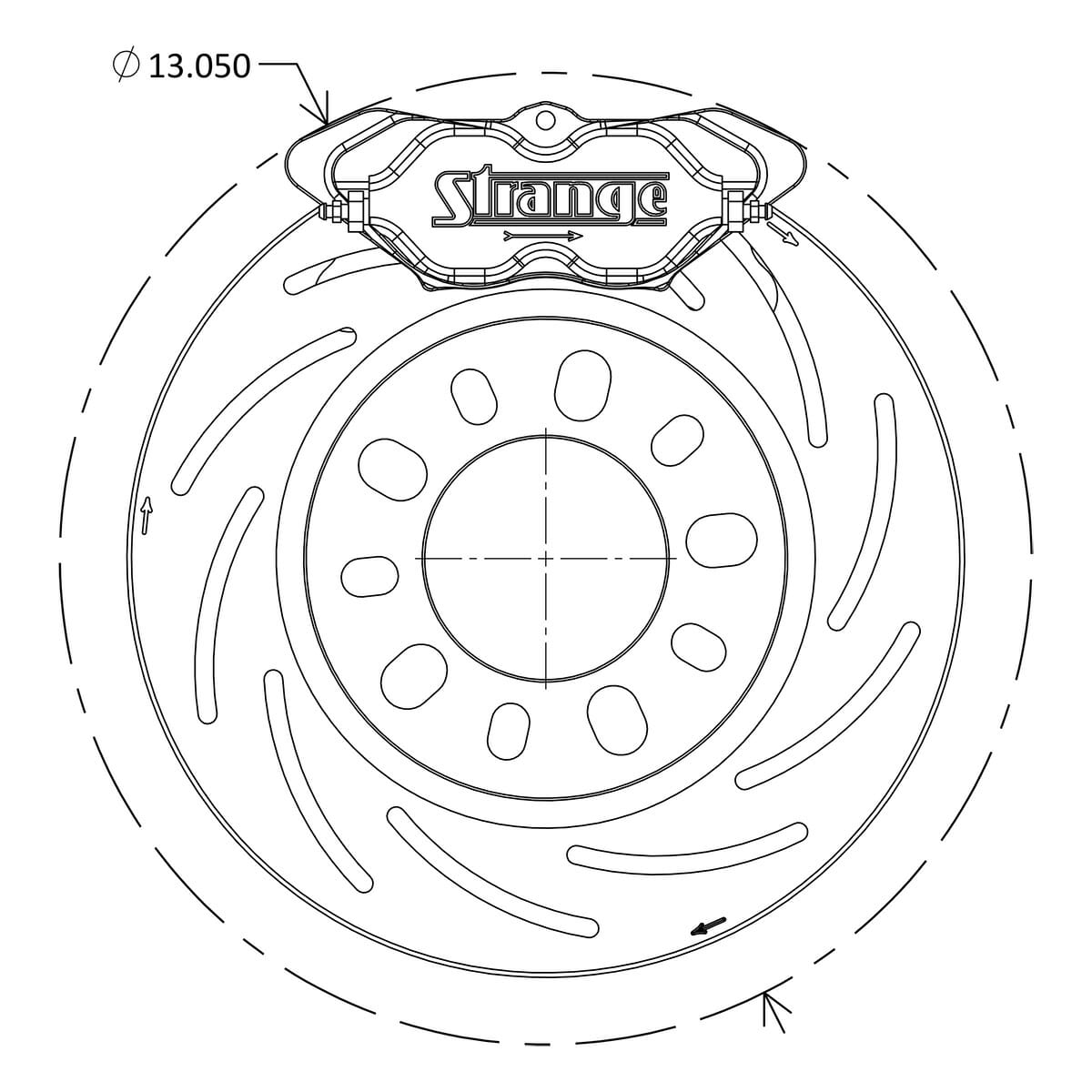

One Piece Forged Steel Rotors – B2792 / B2793
• Directional slots increase air flow and reduce weight
• One piece design eliminates bolts & safety wire
• Hat section drilled & milled to further reduce weight

Register Ring
• Adapts brake rotor to OEM hub register
• Positions rotor for proper caliper alignment

Four Piston Directional Calipers – B5002 / B5004
• Aluminum bodies drastically reduce weight
• 1.625″ & 1.750″ pistons vary pressure decreasing pad taper
• Stainless steel pistons resist corrosion
• Anti-rattle clips reduce brake pad vibration and noise

DTC-30 Semi Metallic Brake Pads – B5010
• Best compound suited for front application
• Excellent cold holding capabilities

Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance

All Necessary Mounting Hardware

Hubs, Studs, Bearings, Races, Seals, Hoses, & Brake Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting

Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs
