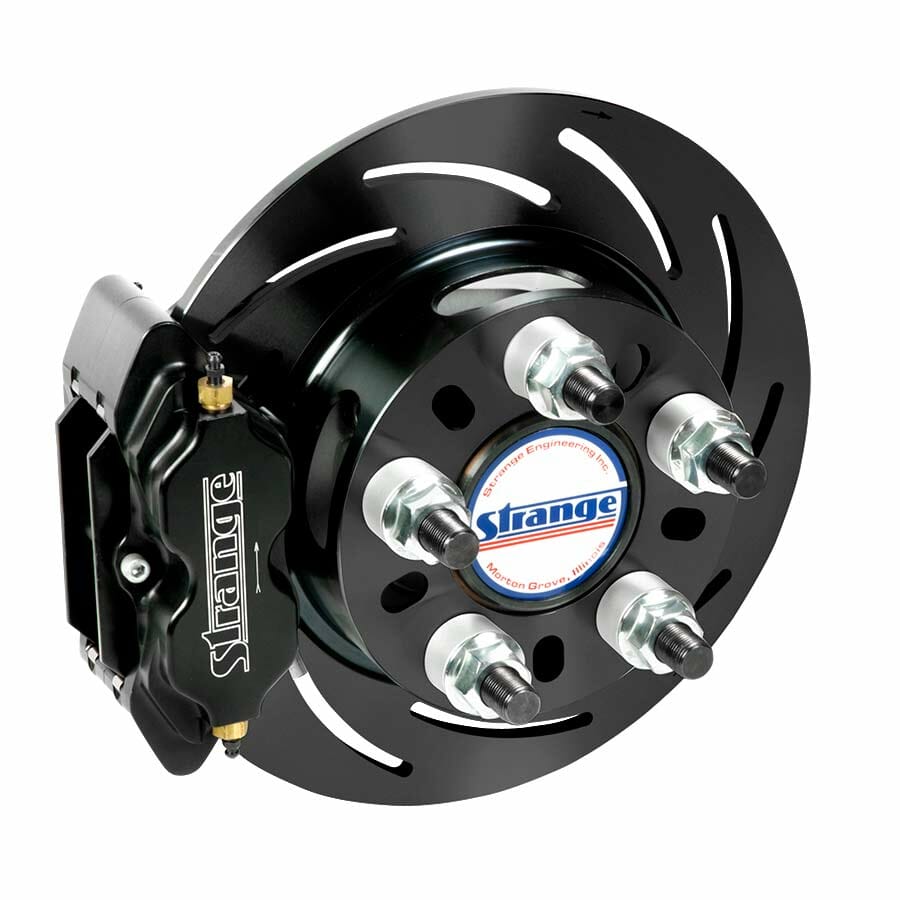

Strange Pro Series Rear Brake Kit | For Strange 3.150″ Ford 8.8 Housing Ends | 1 Pc Rotors, 4 Piston Calipers & DTC-30 Brake Pads


Designed Specifically For Drag Racing

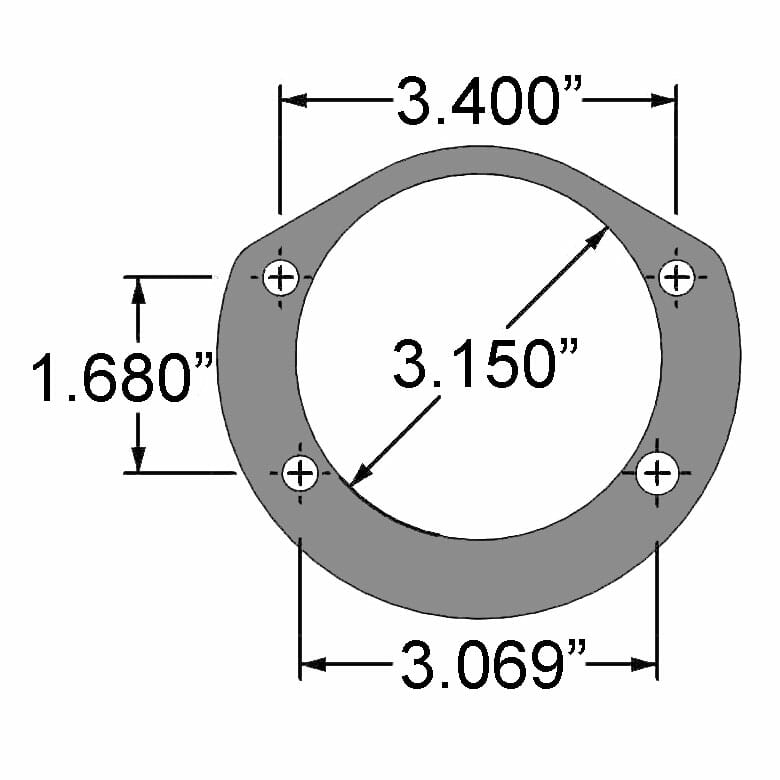

For 86-93 Mustang 8.8 With Strange 3.150″ Housing Ends – H1138

Requires
• Aftermarket axles with 5 lug bolt pattern
• Ball style axle bearings *

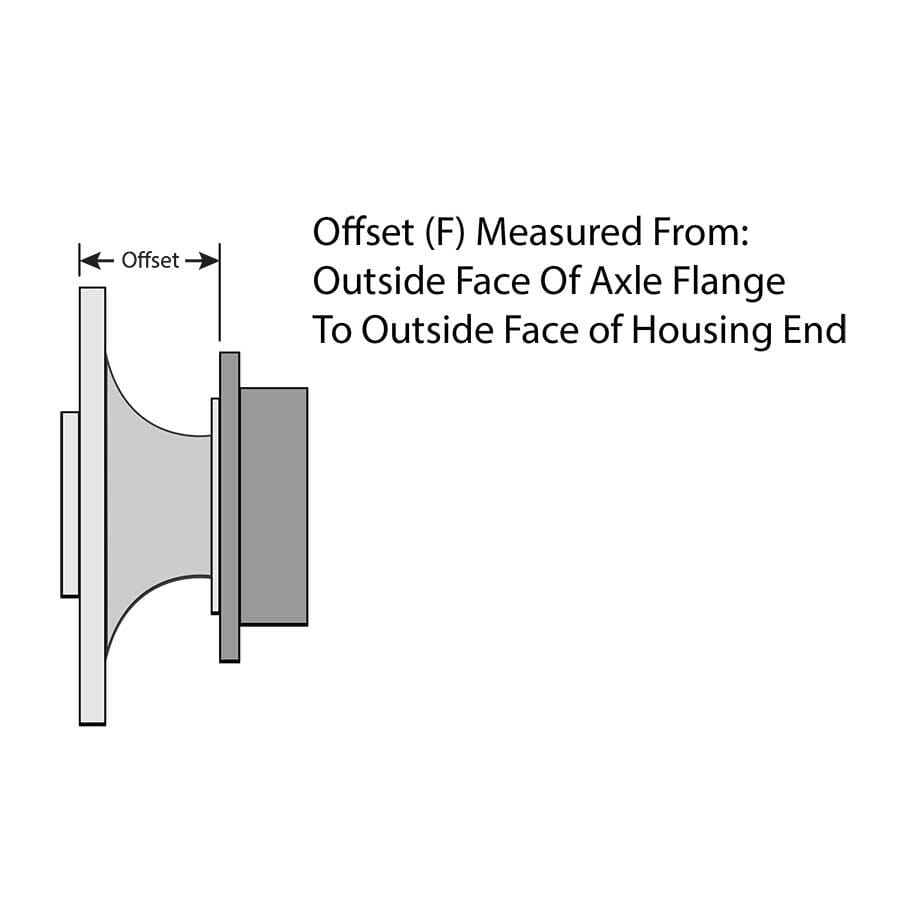

• 2.500″ brake offset

* Caliper mount relief isn’t correct for tapered bearings

4 Lug Option
Available at an additional cost

One Piece Forged Steel Rotors – B2792 / B2793
• Directional slots increase air flow and reduce weight
• One piece design eliminates bolts & safety wire
• Hat section drilled & milled to further reduce weight
• 4 1/2″, 4 3/4″ & 5″ Uni-Lug bolt circles for both 1/2″ & 5/8″ studs

Four Piston Directional Calipers – B5002 / B5004
• Aluminum bodies drastically reduce weight
• 1.625″ & 1.750″ pistons vary pressure decreasing pad taper
• Stainless steel pistons resist corrosion
• Anti-rattle clips reduce brake pad vibration and noise

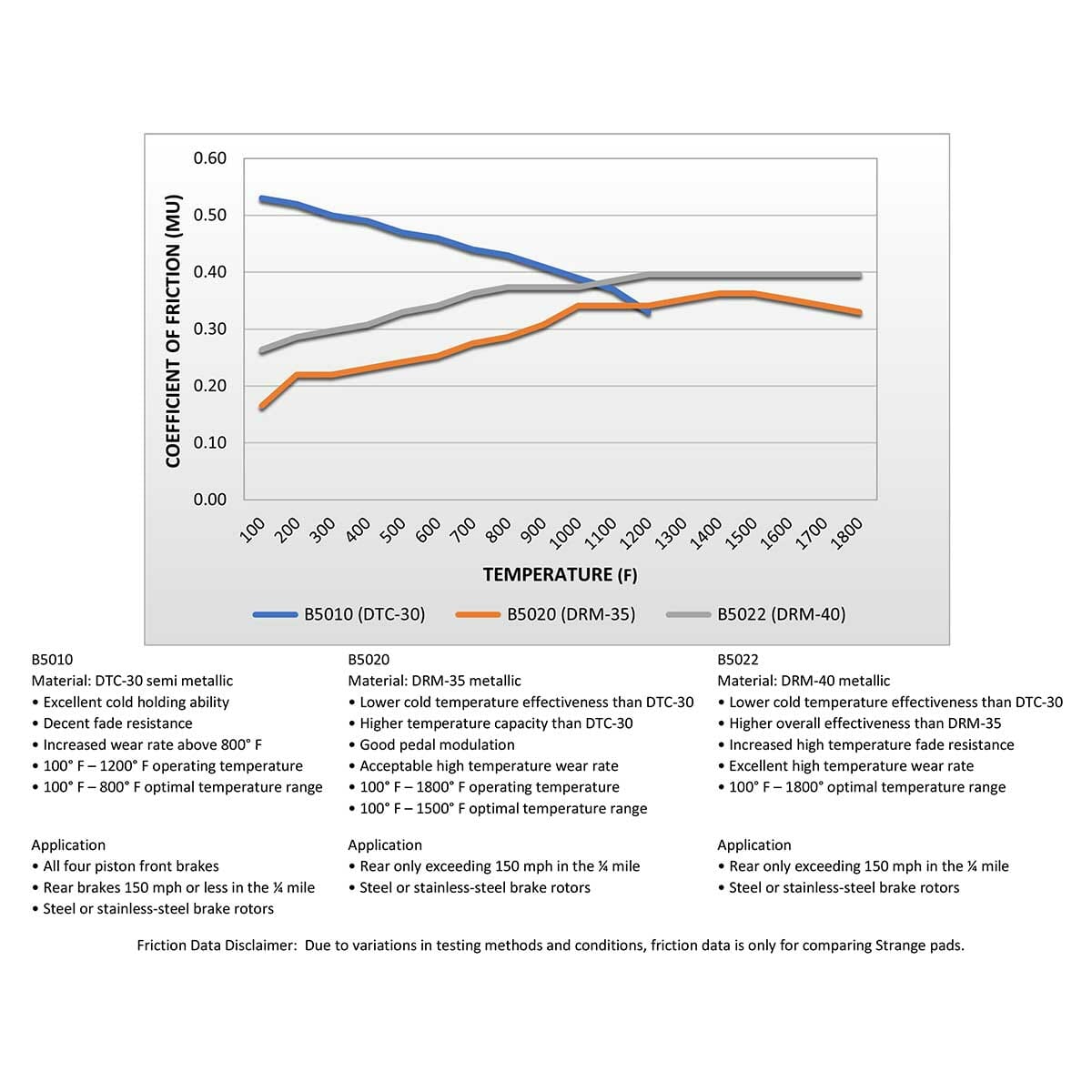

DTC-30 Semi Metallic Brake Pads – B5010
• Provides the best starting-line cold holding power
• Recommended for vehicles going 150 MPH or less in the 1/4 mile

Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance

Housing End Bolt Kit
• Provides additional components not supplied in most aftermarket kits

Need More Wheel Clearance?
Evolution 4 Low Profile Caliper Option – OPRB10

Want Billet Calipers?
Evolution 4 Billet Caliper Option – OPRB07

Brake Hoses & Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
